| Regular Size (W*L*T) | 1,220*2,440*6 mm |
| Max. Size(W*L*T) | 1,600*12,000*30 mm |
| Regular Thickness | 4/6/8/10/12/15 mm |
| Available Thickness | 4 - 15 mm |
| Corrugated Core Thickness | 0.2 - 0.5 mm |
| Regular Surface Treatment | PVDF, PE, Powder Coating, Anodized, etc. |
| Perforation | Yes (customized) |
| Applications | Ceiling, Roofing, interior decoration of train, bus, ship, truck body, etc. |
| Customerization(MTM) | Yes (color, surface texture, size, shape, pattern, etc.) |
Surface treatment
Powder coating: it is most widely used and environmental friendly way
Roll coating: it can make flower and wooden beautiful pattern come to life with 15 years lifespan.
PVDF: It is the best surface treatment with anti-weather, anti-hit function. Experiment shows that pvdf will not fade in 20 years under harsh rain and sun shining.
Features:
1, High stiffness, the flatwise shearing strength is up to 2MPa.
2, Good thermal insulation.As the corrugated core has empty channels between front and back skins, the heat is prevented and reserved in the channels, which will give the building with heat insulation.
3, High flatness.
4, Excellent weather resistance.
5, Recyclable.
6, Easy to be fabricated and installed.
Application
Compare with solid aluminum sheet, the flatness and rigidity of aluminum corrugated composite panel will be much stronger because of the corrugated core inside. The various applications of aluminum corrugated composite panel are as below.

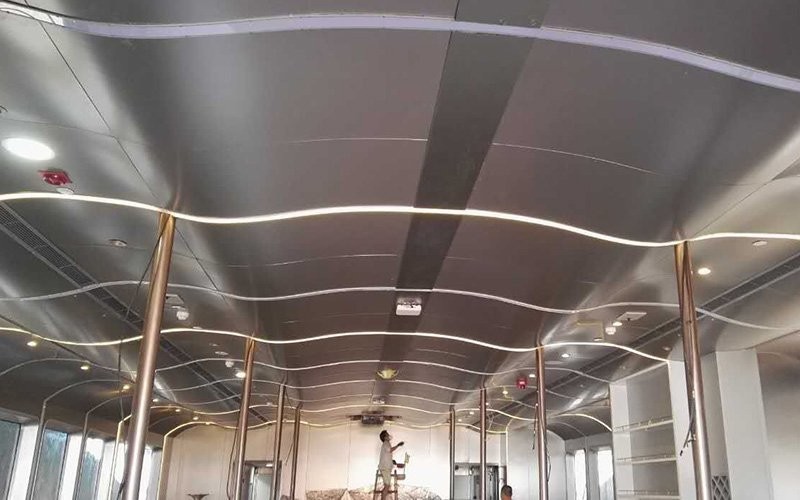

* ceiling
* roofing
* container house
* interior decoration of train, bus, ship
* truck body
* other indoor and outdoor applicaiton
Material:
For aluminum sheet: Aluminum Alloy 3003H16-H18
For aluminum corrugated core: Aluminum Alloy 1100H16/H24
Packing and Container Loading
There is protective film on panel surface to prevent the skin from dirty and scratch, the panels will be piled flatly and pack in export grade plywood cases.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the raw materials are in stock. or it is 30-45 days if the raw materials are not in stock, based on quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge yet customers are expected to afford the shipping cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
